    N-BK7/H-K9L Optical Glass Porro Prism For Telescope Microscope Imaging System

    Ask Lasest Price
    Brand Name : UNIFORM
    Model Number : AUTC-LGR-348
    Certification : CE,SGS
    Price : Negotiable
    Payment Terms : Western Union, T/T
    Supply Ability : 10000 pcs/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    N-BK7/H-K9L Optical Glass Porro Prism For Telescope Microscope Imaging System

    N-BK7/H-K9L Optical Glass Porro Prism For Telescope Microscope Imaging System

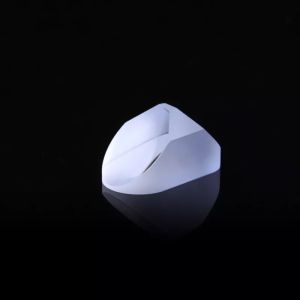

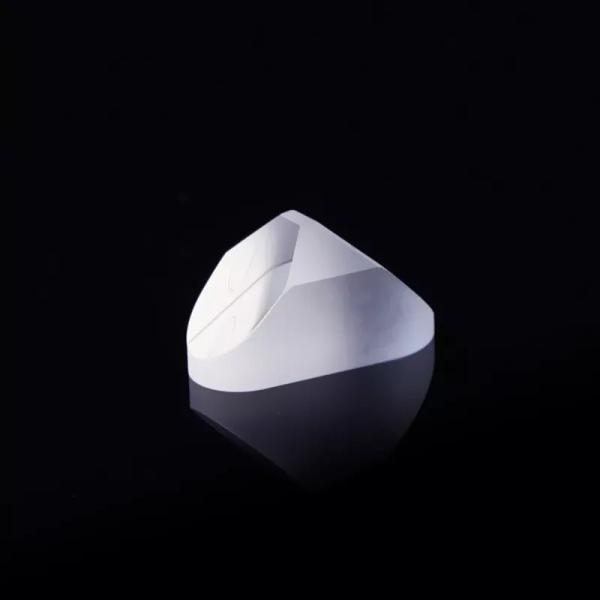

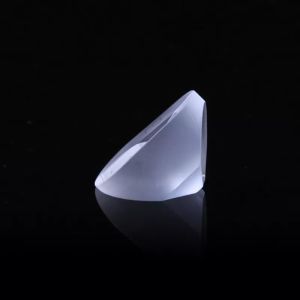

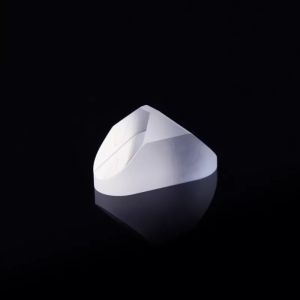

    Porro prisms are isosceles right-angled triangular prisms molded from glass blocks, with the end plane facing the right angle. In use, the light enters the large rectangular surface of the prism, passes through the two total reflections of the inclined surface, and then penetrates the original incident plane to exit. Because light only enters and exits in a normal state, the prism has no effect of dispersion. Pro prisms are used especially in many binoculars to provide image reconstruction and longer optical path folding, which effectively shortens the distance between the objective lens and the eyepiece. The conventional product specifications are shown in the table below, and we can also customize various specifications of Pro prisms for customers.

    Specification


    Product Name
    Porro prism
    Material
    BK7/K9
    Usage
    Optical
    Dimension Tolerance
    ±0.01mm
    Flatness
    1/4Lambda
    Angle Tolerance
    3Arcmin
    Surface Quality
    60/40
    Coating
    uncoated/customer request
    Usage
    optical equipment

    Production Process


    N-BK7/H-K9L Optical Glass Porro Prism For Telescope Microscope Imaging SystemN-BK7/H-K9L Optical Glass Porro Prism For Telescope Microscope Imaging SystemN-BK7/H-K9L Optical Glass Porro Prism For Telescope Microscope Imaging SystemN-BK7/H-K9L Optical Glass Porro Prism For Telescope Microscope Imaging SystemN-BK7/H-K9L Optical Glass Porro Prism For Telescope Microscope Imaging System
